AST&T Auto Shake and Curing Machine is purpose‑built for complete DTF post‑processing, integrating intelligent powder shaking, melting and hot‑melt powder curing in one vertical unit. Tailored for professional studios for high‑volume, continuous roll‑to‑roll production, it supports printing and curing dozens of square meters of graphics per day. Featuring sensor‑driven on‑demand powder feeding with powder‑saving recycling effect, built‑in oil‑water separator and fume purifier, side‑opening heating cover and premium brushless motor, this 1400W energy‑saving machine delivers stable performance, low noise and neat workspace, ideal for compact‑footprint DTF production setups.
Product Specification：
Item
Parameter
Product Name
AST&T Auto Shake and Curing Machine
Max Working Width
360 mm
Curing Travel
500 mm
Input Voltage
110‑220V / 50‑60Hz
Peak Current
13A @110V; 6.5A @220V
Rated Power
1400W
Rewind Mode
Diffused‑sensor automatic film take‑up
Heating Element
3 pcs 400 mm halogen infrared heating tubes

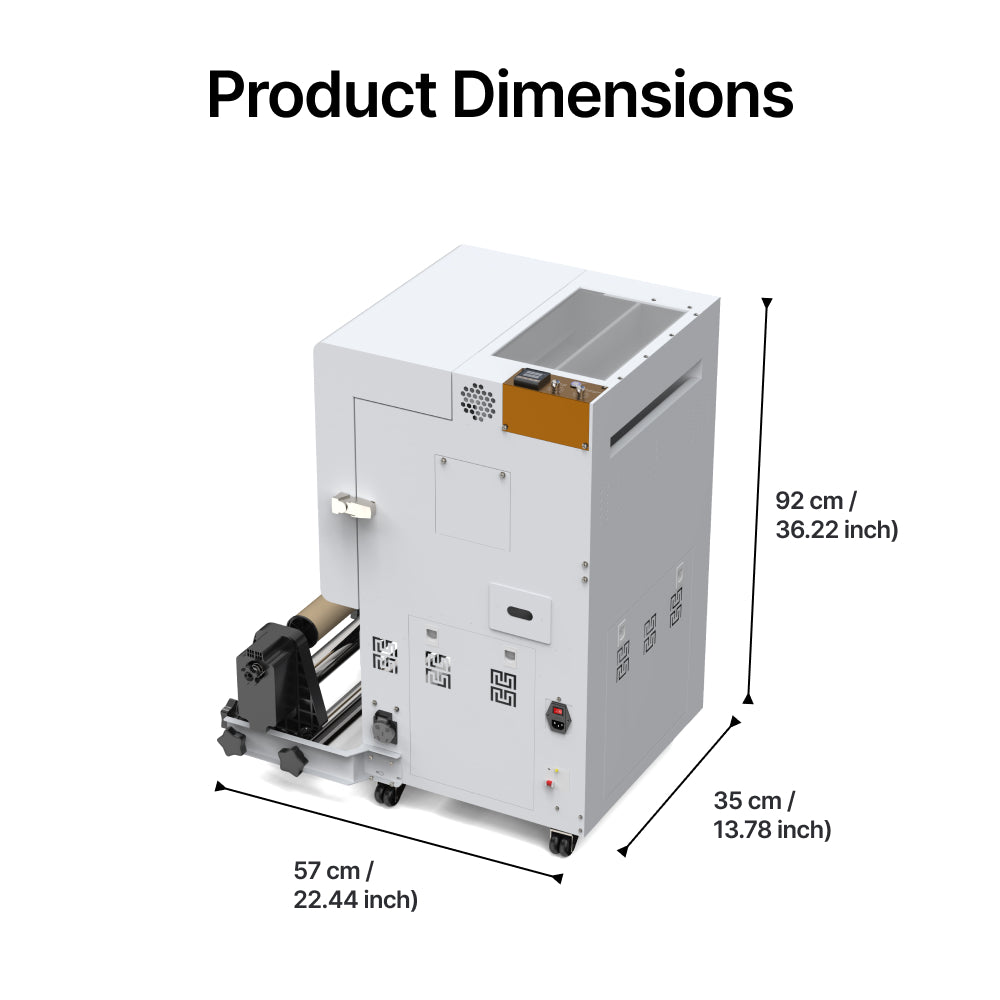

Machine Dimension (L×W×H)
570 × 350 × 920 mm
Packing Dimension (L×W×H)
660 × 580 × 1100 mm
Net Weight
52 kg
Gross Weight
70 kg
Machine Color
Black, grey, white; custom color & style available
