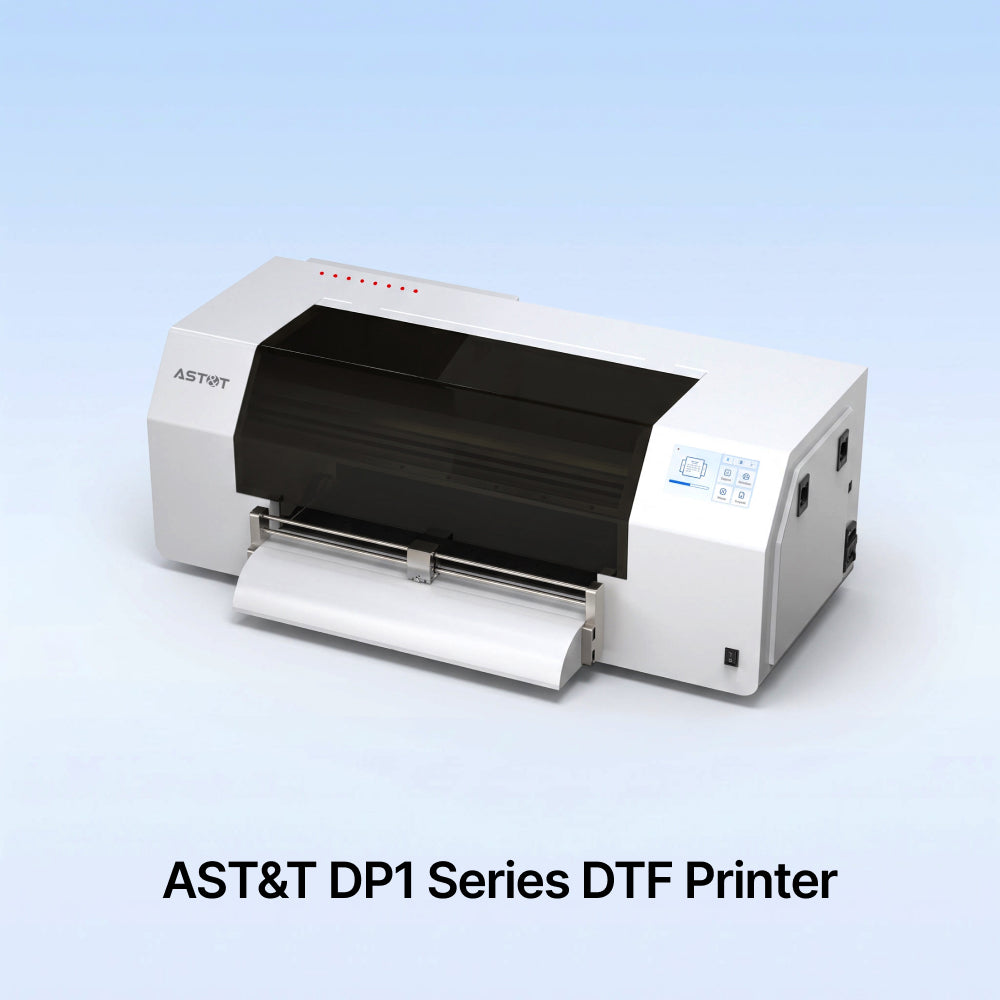

AST&T DP1 Series DTF Printer

AST&T DP1 Series DTF Printer

Quick Overview:

AST&T DP1 Series DTF Printer r is designed to meet diverse printing needs with its flexible configuration. It supports different printhead solutions and boasts a maximum printing speed of nearly 6m²/h, ensuring efficient batch production for various scenarios. Equipped with a 4.3-inch high-definition screen, it supports UI customization, allowing users to adjust the operation interface according to personal habits. Built with Hansenboard, the printer runs smoothly with both 2 and 1 software modes, delivering stable and responsive performance. Featuring silky smooth cutting and practical Travel Mode, it combines efficiency, flexibility and user-friendliness, making it an ideal choice for textile customization and related industries.

Product Specifications:

Parameter Values
Product Name AST&T DP1 DTF Printer
Max Print Width 13″(33cm)-15″ (38cm)
Max Resolution Pro: 720×3600 DPI; Standard: 720×2160 DPI
Print Head Pro: 1×I3200 HD; Standard: 1×XP600
Color Channels Pro: CMYK + 4×White; Standard: CMYK + 2×White
Print Speed (Pro) 60.06 ft²/h (5.58 ㎡/h)
Print Speed (Standard) 16 ft²/h (1.49 ㎡/h)
Dimensions 75.4×55.5×31.1 cm (29.69×21.85×12.24 inch)
Footprint 3.47 ft² (0.42 m²)(with vertical shake oven)
Noise Level Standby: <10 dB; Printing: <30 dB
Supported Fabrics Cotton, linen, polyester, blended fabrics
Supported Files TIF, TIFF, BMP, JPG, JPEG, PDF, AI, DXF, EPS, PNG, PSD
Air Purification Integrated 4-stage filtration system
Powder Refill Once per 48 hours
Film Consumption 30% lower than competitors
Nozzle Clogging Rate Reduced by 30%
Operation One-touch cleaning, one-touch moisturizing, auto ink circulation, auto drying
Software 2-in-1 integrated software (Customization supported )
